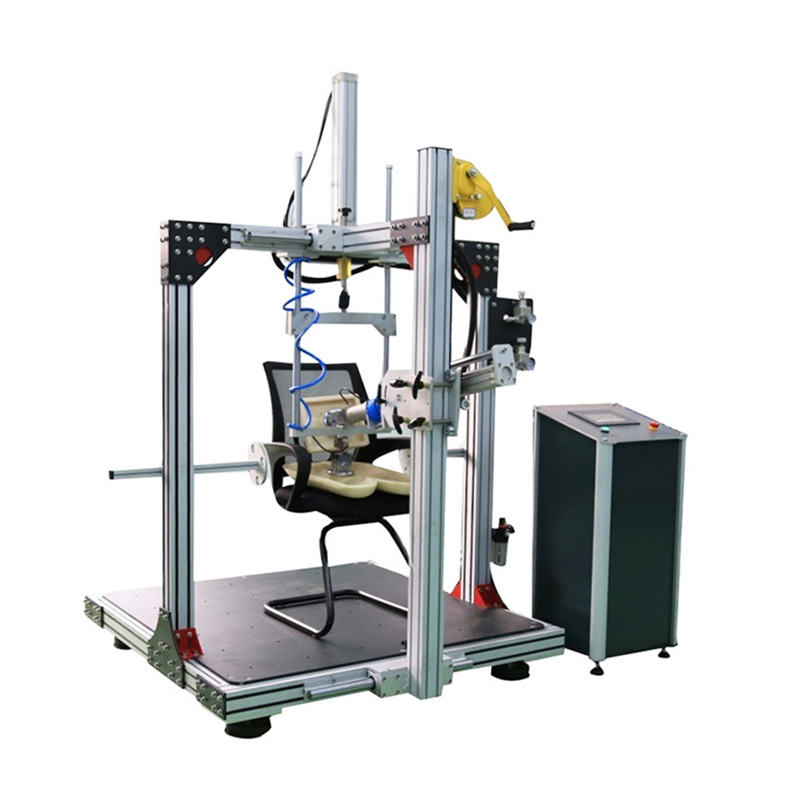

Chair testing machine

Technical parameters:

1.Seat surface loading pad: a rigid object with a natural concave and convex shape,380 * 495 * 75 mm

2. Test speed: 1-30 times/min

3. Floor area: 1200*1100mm

4. Gas source: 0.4-0.6 mpa

5. Sensor: 500kg

6. Load element resolution: 3/10000.

7. Test accuracy: static: ±2%; dynamic force: ±3%

8. Machine weight: 320kg

9. Test times: 0-999999 can be set at will

10. Power supply: 220V/50Hz, 5A

11.Power off memory: with stop/power off memory and stop function.    Test results will be saved automatically when the machine is shut down or out of power. USB derivate     Get to the computer.

12. Stop mode: stop the machine after reaching the test number and alarm.

13.The basic frame adopts the modular construction of high-strength aluminum metal frame,    The bottom frame is of solid structure.

14.Base: high strength industrial aluminum profile + gb 45 steel, thickness ≥    10mm, strong magnet to fix the sample.

15.Control mode: PLC touch screen control.

16.Dimensions: length 1320mm* width 1480mm* height 2100mm.

Standards:

GB/T 10357.3 2013 EN 1728-2012

Product Usage:

The simplex of the machine is designed to simulate the strength or bearing capacity of the furniture under the condition of one-time or repetitive load in normal use and habitual misuse, so as to test the strength of the product under the condition of repeated use and repeated loading. Suitable for ordinary office chairs.

Products features:
1.It is composed of control system, pneumatic system and regulating machinery;

2. Use aluminum profile to make the frame, beautiful and generous;

3. Adopt imported pneumatic accessories and cylinder products;

4. Can work long hours unattended.
