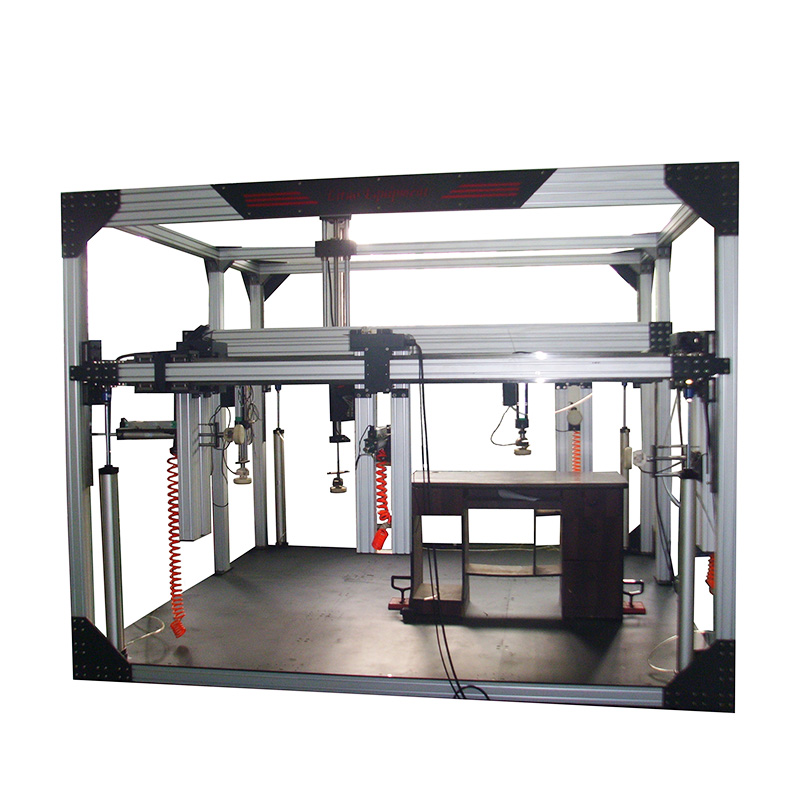

Chair testing machine

Product description

This machine is suitable for the mechanical property test of cabinet, table and bed furniture, and can carry out horizontal and vertical static load and durability and stability test.

Technical parameter

1. Frame specification: 2500*2500*2000mm;

2. The whole machine is made of: 80*80mm aluminum profile;

3. Loading cylinder: cylinder diameter 50mm, stroke 300mm.

Theoretical maximum loading force value: 1500N

4. Force sensing: high-precision force sensor, capacity 3KN

5. Control mode: computerized control

6. Counter: 0-999999 times can be set.

7. Air source: 7kgf/cm^2 or above

8. Power supply: AC 220V 50Hz5A

9.Base: high-strength aluminum + #45 steel, thickness ≥ 10mm, strong magnet fixed specimen.

Product features

1. Adopting high quality industrial aluminum profile frame structure design.

2. Adopting pulley structure design can easily and conveniently adjust the loading position, convenient positioning and improve work efficiency.

3. Adopting computer controller to control the movement of the instrument, easy to operate.

4. The force value adjustment adopts precision regulator to adjust the air pressure to change the loading force value, together with the high-precision force sensor to sense the force value instantly, each loading group is individually adjusted and controlled, the loading force value is stable and reliable.

5. The loading pads are removable and can be easily replaced with different loading pads to meet different testing requirements.

Applicable standards

EN 581-3,EN 527-3,EN 1730,BIFMA X5.1,ISO 7173,ISO 7171,EN 1335
