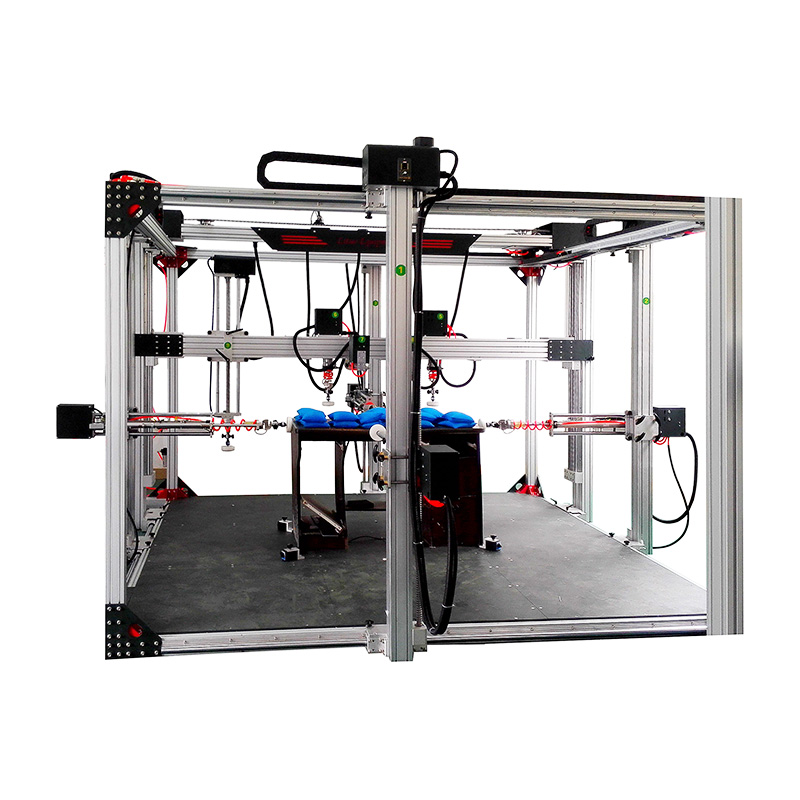

Mattress&Sofa Testing Machine

Mechanical property testing machine for cabinets, tables and beds
  • Short Description
    This tester is suitable for testing the mechanical properties of cabinet, table and bed furniture. It can conduct static load tests in both horizontal and vertical directions as well as durability and stability tests.
  • SEND INQUIRY NOW
Product Details

Product description

This tester is suitable for testing the mechanical properties of cabinet, table and bed furniture. It can conduct static load tests in both horizontal and vertical directions as well as durability and stability tests.


Conform to the standard

EN 581-3, EN 527-3, EN 1730 GB/T 10357.1-2013

GB/T 10357.2-2013, GB/T 10357.4-2013

GB/T 10357.5-2011, GB/T 10357.6-2013

GB/T 10357.7-2013


Technical parameters

1. Frame specification :2500*2500*2000mm, made of 80*80mm aluminum profiles

2. Loading cylinder: Cylinder diameter 50mm, stroke 300mm, theoretical maximum loading force value 1500N

3. Force value sensing: High-precision force sensor, capacity 3KN

4. Control mode: Computer control

5. Counter :0 to 999,999 times settable

6. Force value regulation: The air pressure valve regulates the air pressure and is equipped with a force value sensor for display

7. Gas source: Stable gas source of 7 KGF /cm ² or above (provided by the customer)

8. Power supply: 1∮AC 220V 50Hz5A

9. Base: High-strength industrial aluminum profiles + national standard No. 45 steel, thickness ≥10mm, with strong magnets to fix the sample.

10. The program screen can be selected as either Simplified Chinese or English, and can be freely changed on the program Settings page.

11. Power-off memory: It has the functions of power-off memory and power-off point detection for shutdown. The test results will be automatically saved if the machine stops or power is cut off during the process.
