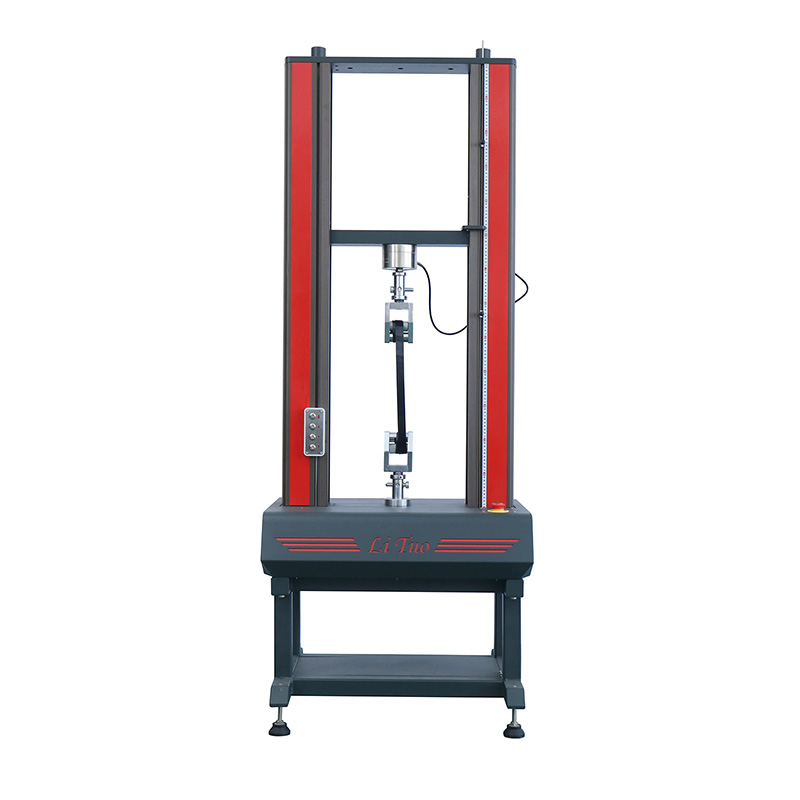

Computerized servo system double-column tensile testing machine
  • Short Description
    This series of tensile testing machine, the use of the Load Cell induction digital display, can accurately test the longitudinal and transverse tensile strength, tensile, compression, bending, shear, tear, peel test for mechanical properties of, also can realize constant stress, constant strain, creep, relaxation and closed loop test, after the special device can complete the reverse, cupping test items, etc. This machine is suitable for testing the properties of fabric, plastic film, composite film, woven bag, soft packaging material, adhesive, adhesive tape, adhesive, rubber, paper, etc. Different fixture can be used for different tests.
  • SEND INQUIRY NOW
Product Details

Product description

This series of tensile testing machine, the use of the Load Cell induction digital display, can accurately test the longitudinal and transverse tensile strength, tensile, compression, bending, shear, tear, peel test for mechanical properties of, also can realize constant stress, constant strain, creep, relaxation and closed loop test, after the special device can complete the reverse, cupping test items, etc. This machine is suitable for testing the properties of fabric, plastic film, composite film, woven bag, soft packaging material, adhesive, adhesive tape, adhesive, rubber, paper, etc. Different fixture can be used for different tests.


Product Parameter

1. Capacity selection: 10kg, 20kg, 50kg, 100kg, 200kg, 500kg, 1000kg, 2000kg
2. Unit switching: all kinds of international units can be arbitrarily switched
3. Resolution: 1/100,000, accuracy level 0.5
4. Can do tension, extension, stress, strain, and show the curve, holding pressure, bending
5. Maximum stroke: 1000mm(including fixture), left and right span: 410mm(standard machine)
6. Protection device: including up and down stroke control switch, the program sets the maximum load, maximum extension, automatic stop emergency switch, the drive motor is a servo motor, completely controlled by the computer speed and travel, different traditional AC, DC motors are controlled by voltage, need to be divided into different sections of poor control precision.
7. Test speed: 0.001 ~ 500mm/min
8. Power supply: 1 wire,AC220V,15A
9. Fixture: one set of stretching fixture (test for stretching, tearing and stripping)
10.Functions: test results of stretching, tearing, stripping, bending, etc. Computer software automatically calculates the results and displays the curve diagram
11. Force precision: within ±0.3%
12. Motor: panasonic servo motor, Japan
13. Software system: universal high-precision economic system independently developed by leto
14. Support double column: advanced aluminum alloy material
15. Host color: green
16. Screw: Taiwan TBI ball screw


Product features

1. Excellent appearance design. Our company has been paying great attention to the appearance of products for many years, and developed many products comparable to foreign models, the surface of which is electrostatic jet.
2. Key components. International famous brand, such as panasonic servo system, nano-controlled photoelectric encoder.
3. High precision ball screw is adopted for loading, with stable loading, long life of the testing machine, good long-term stability and energy saving.
4. Multiple protection measures. Such as: power link of all kinds of electrical protection, software part of the overload, overdisplacement protection, mechanical force safety limit protection.
5. In batch test, the software can be automatically stored at the end of the test of one sample, and automatically entered into the next test, so that the whole batch test can be completed automatically
6. With the function of curve superposition, the curves of the same group of tests can be superimposed and compared with a variety of colors.
7. Management by permissions. Operators of different levels have different operational permissions, and the menu and other contents that can be operated are also different. Ordinary operator operation
Simple, convenient and fast; The operation of the management personnel increased the adjustment and other professional operation content, effectively protected the whole system.


Conform to the standard

In accordance with gb528-2009, gb529-2008, gb15254-1994, GB2790, ISO8510,GB 13022, GB 8808, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ISO 37, JIS P8113, QB/T 2358, QB/T 1130,ASTM D5748,ASTM D638,ASTM D5748D882, jc887-2001, GB/ t2570-1995, GB/ t7124-2008, jct547-2005 standards related requirements.
