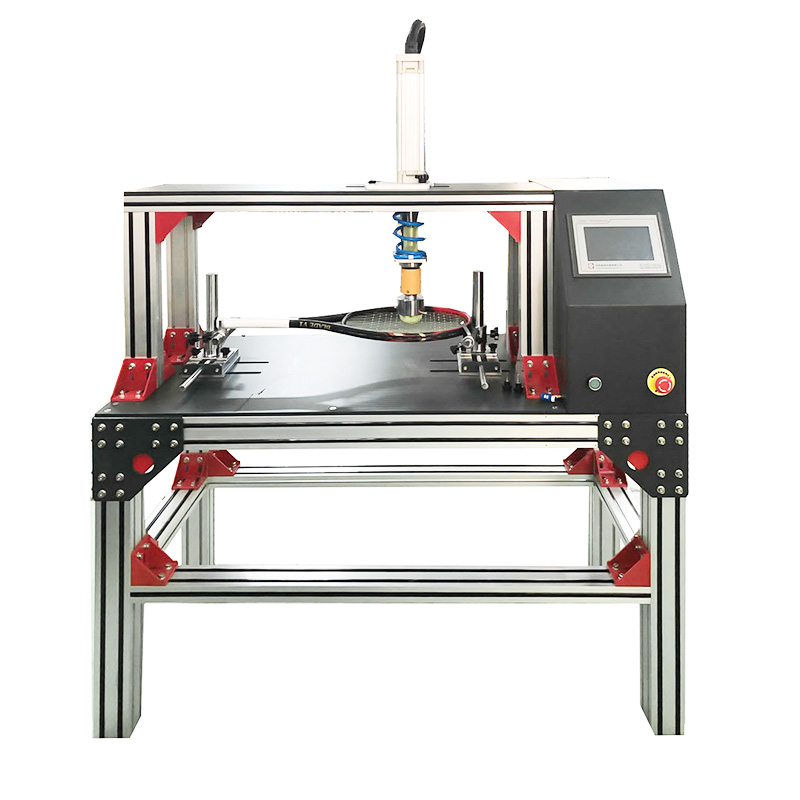

Tennis testing machine

Product description

The reciprocating fatigue test of tennis racket meets or exceeds the requirements of GB/T 32609-2016 standard.

Technical parameter indicators

1.It should comply with the relevant provisions of GB/T 32609-2016.

2.Diameter of spherical objects to be struck: 65±2mm.

3.Strike frequency: 0 to 100 times per minute, which can be set arbitrarily.

4.The striking force can be set and displayed, with a force value deviation of ±3%.

5.Shutdown mode: The machine will automatically shut down when the number of tests is reached or when the sample is damaged, and the test results will be retained.

6.Data processing: PLC+ touch screen automatic control, automatic recording and display of test data.

7.Test count: 1-999999, settable

8.Power supply: 220V, 5A

9.Air source: 0.4-0.6MPa
