IP (Rain and Dust) Testing Machine

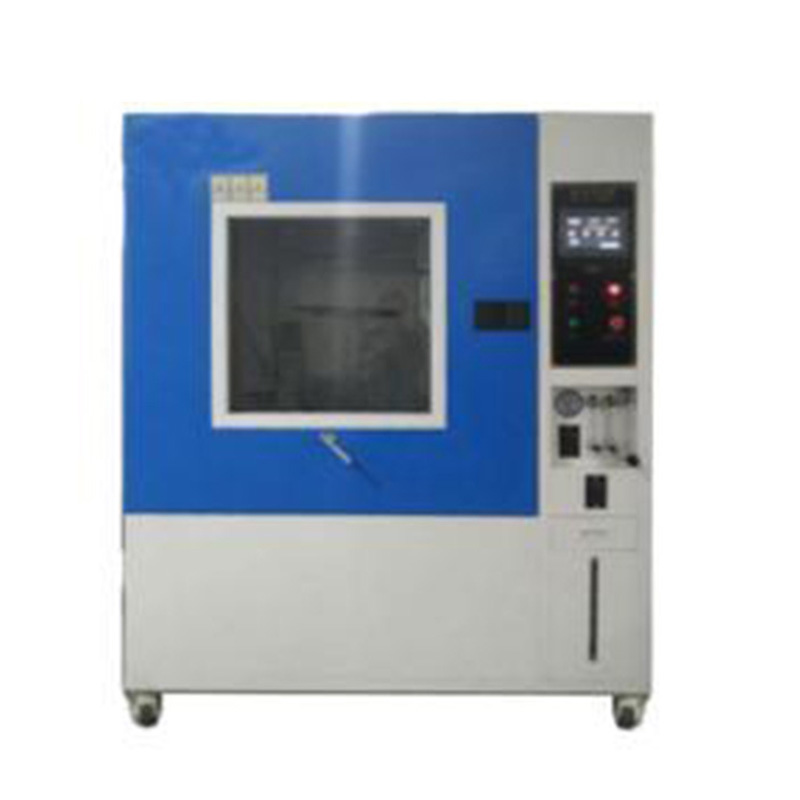

Rain test chamber
  • Short Description
    Climate environment of product aging, fade pigment, the corrosion of the metal has great influence, and aging test has been rubber, plastic, chemical industry, automobile, textile and other industries attaches great importance to the climate environment of many factors, such as light, temperature, humidity, rain, the sun, waterproof test chamber is to simulate the rain environment test equipment. Used for electrical and electronic, automobile, motorcycle parts and other products, parts for waterproof test.
  • SEND INQUIRY NOW
Product Details

Product description

Climate environment of product aging, fade pigment, the corrosion of the metal has great influence, and aging test has been rubber, plastic, chemical industry, automobile, textile and other industries attaches great importance to the climate environment of many factors, such as light, temperature, humidity, rain, the sun, waterproof test chamber is to simulate the rain environment test equipment. Used for electrical and electronic, automobile, motorcycle parts and other products, parts for waterproof test.


Enclosure structure

1. The inside and outside of the test chamber are made of SUS304 stainless steel plate, and the outer surface is treated with wiredrawn hair lines. The inner lining is a high-quality stainless steel mirror plate.
2. The spray pipe is also made of stainless steel.
3. The workshop and all other parts in contact with water are made of stainless steel or copper.


Control system

1. Speed regulating device: imported frequency converter is adopted for the speed regulating of the swing tube and rotary plate.
2. Main configuration: water storage tank, water pump, pressure-reducing shunt device, pressure meter, flow meter, sprinkler assembly, swing tube swing displacement mechanism, table rotating mechanism, electrical control system, visual toughened glass door, deceleration mechanism, etc.


Technical parameters

1. Studio size: 800*800*800mm (D*W*H)
2. Water spray aperture of pendulum tube: 0.4
3. Sprinkler spacing: 50mm
4. Spray ring radius: 375 or 500(mm)
5. Diameter of spray pipe: 16mm
6. Swing Angle amplitude of the pendulum tube: ±60°±90°
7. Water spraying Angle of swing tube: ±60°, ±90°
8. Pendulum speed adjustment: 0 ~ 30 RPM (adjustable)
9. Rain water pressure: adjustable from 0.1 to 6bpa
10. Water supply: under pressure of 4bar, the flow reaches 39.2L/min
11. Test bed speed: 0 ~ 20 RPM (adjustable)
12. Test bed area: 400mm, bearing weight is 15Kg, sample frame is adjustable from 0 to 300mm
13. There is a test hole for power lead on the cabinet, which can be connected with external power supply, and the spraying and lighting time can be adjusted
