IP (Rain and Dust) Testing Machine

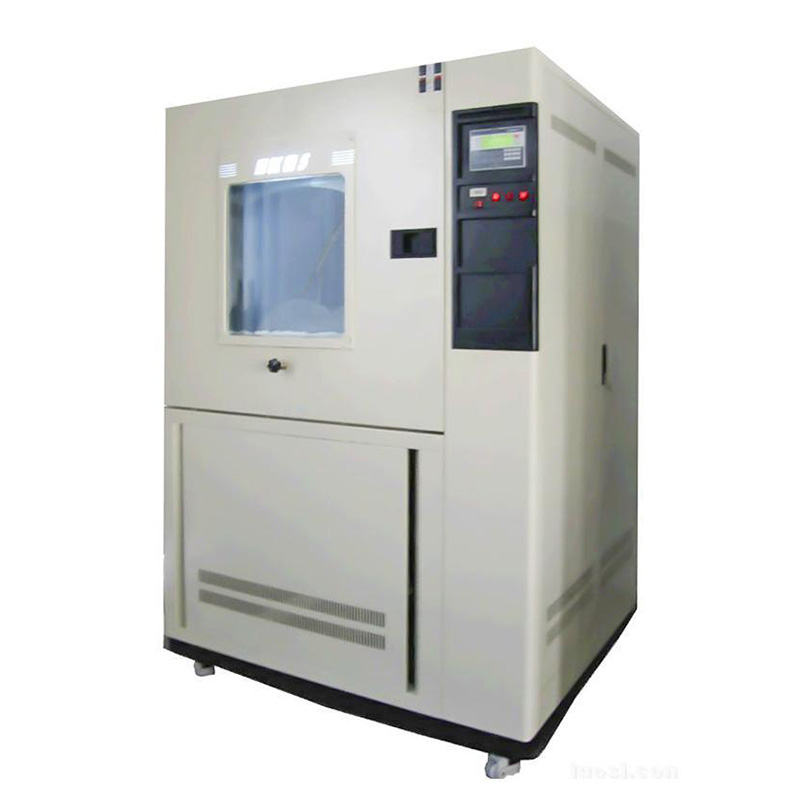

Sand dust test chamber | dust test chamber
  • Short Description
    The machine can provide a non-laminar flow of dust-carrying vertical circulation airflow, which can be controlled regularly. At the same time, it is equipped with a vacuum pump for air extraction in the shell of the product under test, and the air volume and pressure difference can be adjusted. In addition, the chamber is equipped with air flow temperature control device to ensure that the test is carried out under standard environmental conditions.
  • SEND INQUIRY NOW
Product Details

Product description

This machine can also meet the GB2423, GB4706, DIN household appliances, low voltage electrical appliances, automobile, motorcycle parts shell protection level test requirements. This device cannot meet the sand and dust test with wind source in GJB150.


Product features

The machine can provide a non-laminar flow of dust-carrying vertical circulation airflow, which can be controlled regularly. At the same time, it is equipped with a vacuum pump for air extraction in the shell of the product under test, and the air volume and pressure difference can be adjusted. In addition, the chamber is equipped with air flow temperature control device to ensure that the test is carried out under standard environmental conditions.


Technical parameters

1. Room size: D800*W800*H800mm
2. Environmental conditions: air temperature :0 ~ 35ºC
3. Relative humidity :25% ~ 75%RH
4. Atmospheric pressure :86 ~ 106kpa
5. Rated voltage :AC380V
6. Rated frequency :50HZ
7. Input power :2KW
8. Studio temperature: room temperature ~ 60ºC, adjustable
9. Talc powder consumption :2kg/m3
10. Extraction vacuum pump: extraction flow rate (0 ~ 6)L/min
11. Differential pressure (negative pressure):0 ~ 2kpa
12. Test power supply :AC110V(500W),50HZ /AC220V,50HZ
(with test lead hole)


Conform to the standard

It is designed and manufactured in accordance with gb4208-93 (equivalent to gb4208-93, iec60529-2001) "protection class of enclosure (IP code)", applicable to the sand test standards related to the first characteristic Numbers of electrical products are 5 and 6(IPX5 and IPX6).
