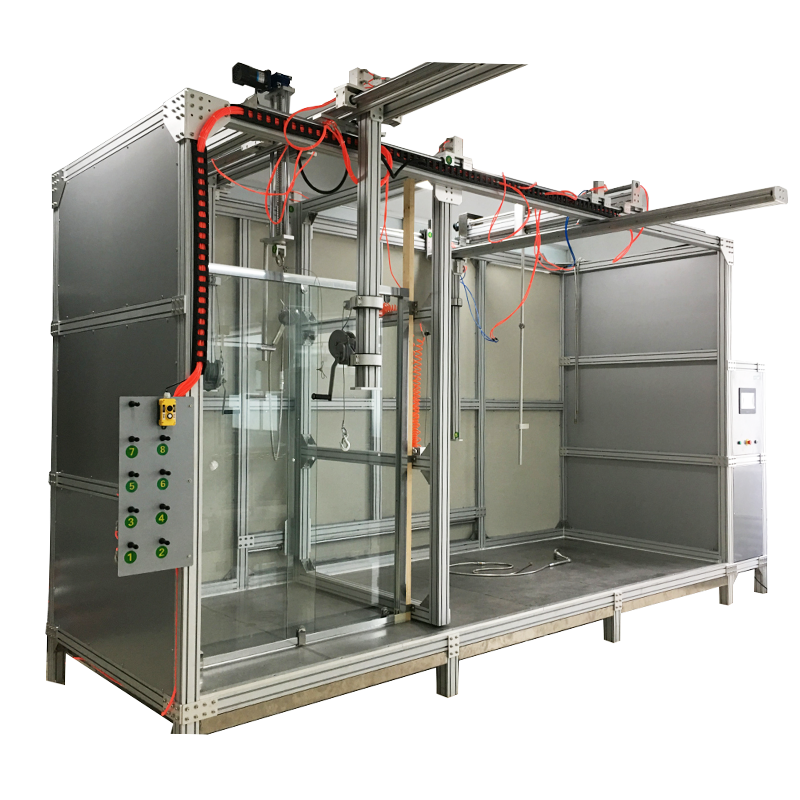

Shower room testing machine

Shower Enclosures Comprehensive Performance Test Bench
  • Short Description
    This machine is mainly used for testing the sealing performance and structural strength of shower enclosure products. Most tests can be completed with just one installation of the shower enclosure.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is mainly used for testing the sealing performance and structural strength of shower enclosure products. Most tests can be completed with just one installation of the shower enclosure.


Control system

This machine adopts control components such as PLC, touch screen, servo motor, force sensor, positioning cylinder, frequency converter, etc., as well as professional test programs to form a control system.


Conform to the standard

1. Shower enclosure: QB2584-2007 Shower Enclosure 5.4.4 Drainage Performance Test

2. Shower enclosure: QB2584-2007 Shower Enclosure 5.4.5 Sealing Performance Test

3. Shower Enclosure: QB2584-2007 Shower Enclosure 5.4.6 Determination of the Limit Dimensions for Door Opening Width

4. Shower Enclosure: QB2584-2007 Shower Enclosure 5.4.7 Minimum Spacing of Door Handles

5. Shower Enclosure: QB2584-2007 Shower Enclosure 5.5.2 Determination of Enclosure Structure Strength

6. Integrated bathroom: GB/T 13095-2008

7. Integrated bathroom: 7.6 Moisture and heat resistance test

8. Integrated bathroom: GB/T 13095-2008

9. Integrated bathroom: 7.8.1 Sandbag impact resistance test

10. Shower room: BS EN 14428-2015 5.6 Stability

11. Shower room: BS EN 14428-2015 5.7 Water retention


Technical parameters

1. Working voltage: Three-phase AC380V for the water pump and single-phase AC220V for the rest, with reliable grounding

2. Working air pressure: External,0.3MPa to 0.6 MPa

3. Power consumption: Up to 5KW

4. Upper computer: PLC+ touch screen

5. Sensor: 500KG

6. Sandbags: one 15Kg and one 50Kg

7. Adjustment range: Up and down: 0-0.5 meters, left and right: 0-1.0 meters

8. Test space: 3740mm in length * 1660mm in width * 3500mm in height or customized as per customer requirements

9. Exterior material: Aluminum profile + aluminum-plastic sealing plate

10. Overall dimensions: Length 4000mm; 2000 mm wide; The height is 2800 mm or customized according to customer requirements
