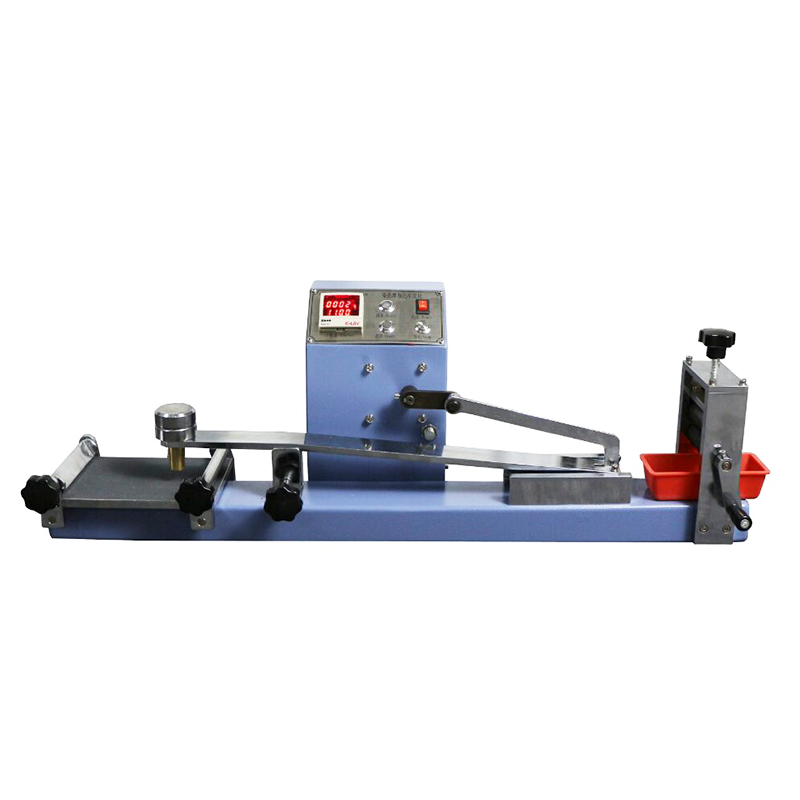

Fabric leather testing equipment

Product description

It is used to test the dry and wet rubbing color fastness of fabrics.

Comply with standards

GB/T3920-2008 Textile Color Fastness Test - Rubbing color fastness.

GB/T5712-1997 Textile Color Fastness test - Color fastness to rubbing with Organic solvents.

ISO 105-X12:2001 Textile color fastness tests - Part X12:

Rubbing color fastness AATCC 8-2013 Rubbing Color Fastness AATCC165-1999 Rubbing Color Fastness Floor textiles - AATCC Rubbing Tester Method.

Technical parameters

1. Friction head diameter: 1601mm(circular):19X25.4mm(rectangular)

2. Friction head pressure weight :9N±0.2N

3. Friction head stroke :104±3mm

4. Reciprocating speed :60±3 times /min

5. Thickness of the test bench liner :0.25mm(water-resistant fine sandpaper)

6. Reciprocating frequency setting range :1 to 9999X100

7. Power Supply :AC220V 50Hz

8. Overall power :20W

9. Dimensions :750X200X200mm

10. Weight :21Kg

Product characteristics

1. The crank wheel is precisely made of high-quality tool steel, effectively reducing mechanical wear caused by long-term use.

2. Driven by high-quality Shanghai Jinling motors, it brings you a better user experience

3. The 600-mesh sandpaper is fixed by pasting, which is neither slippery nor easy to replace.

4. The instrument is equipped with a small roller, making it more convenient to use.
