Toy testing equipment

Product description

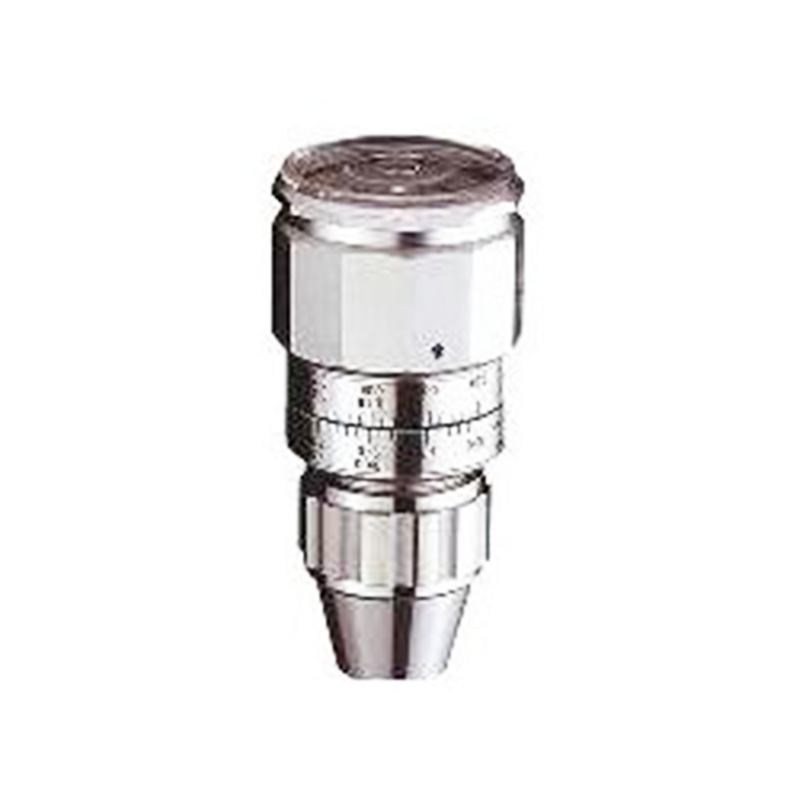

Used to assess whether the product meets the torque requirements. High precision torque tool, can be used for computer and other small parts assembly and special research needs of fine torque measurement. The dial and micrometer scales and micrometer scale divisions on the instrument body make it easy to firmly clamp the workpiece from any position for fast and accurate measurements. Suitable for electrical, packaging, automotive industry, food processing, medical, toys and other industries.

Product parameters

1. Brand: TOHNICHI/ Tohi

2. Measuring range: 0.05cn.m-150cn.m (N)

3. Measurement accuracy: 3%

4. Weight: 0.18-0.52 (kg)

5. Type number: 45ATG 90ATG 150ATG 300ATG 600ATG 1200ATG 2400ATG 1.5BTG 2.4BTG 3.6BTG 6BTG 9BTG 15BTG

6. Torque range (min – Max) : 5-45gf.cm、10-90gf.cm、20-150gf.cm、30-300gf.cm、60-600gf.cm、100-1200gf.cm、300-2400gf.cm、0.2-1.5kgf.cm、0.3-2.4kgf.cm、0.4-3.6kgf.cm、0.6-6kgf.cm 1-9kgf.cm、2-15kgf.cm

7. Minimum scale：1gf.cm、2gf.cm、2gf.cm、5gf.cm、10gf.cm、20gf.cm、50gf.cm、0.02kgf.cm、 0.05kgf.cm、0.05kgf.cm、0.1kgf.cm、0.1kgf.cm、0.2kgf.cm
