Paper printing testing equipment

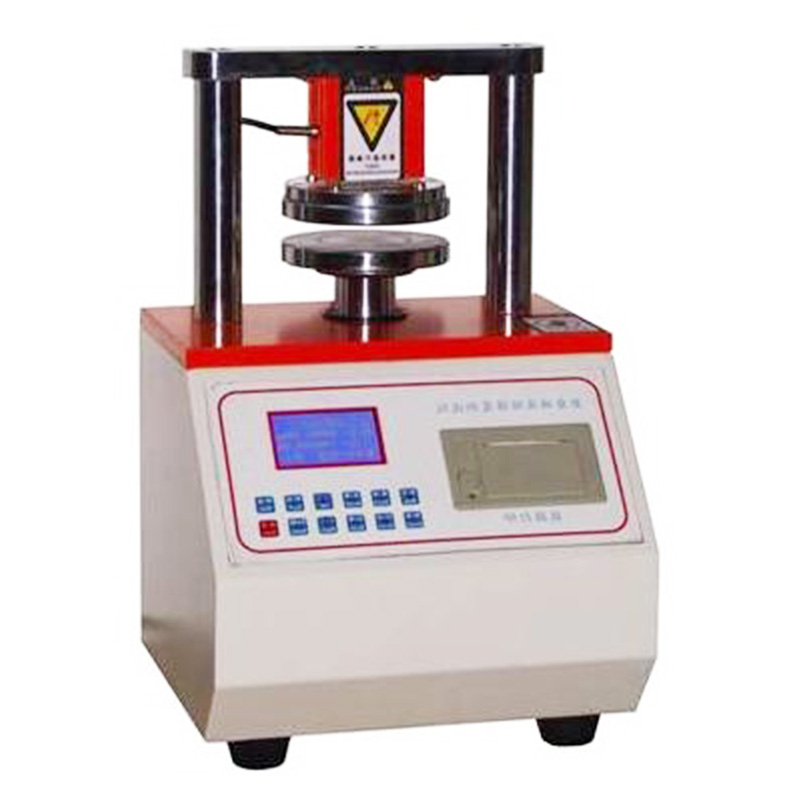

Edge press strength testing machine | Edge press machine
  • Short Description
    This machine is sensed by high-precision sensors and the strength of the sample is displayed in digital form through software analysis. It can conduct various paper quality tests, including ring crush (RCT), flat crush (FCT), edge crush (ECT), adhesion (PAT), and General crush resistance (CMT), totaling five types of tests.
  • SEND INQUIRY NOW
Product Details

Product description:

This machine is sensed by high-precision sensors and the strength of the sample is displayed in digital form through software analysis. It can conduct various paper quality tests, including ring crush (RCT), flat crush (FCT), edge crush (ECT), adhesion (PAT), and General crush resistance (CMT), totaling five types of tests.


Comply with standards:

It is made in accordance with the CNS national standard and designed in line with the instrument requirements for paper and paperboard inspection methods. It complies with the provisions of standards such as GB2679.8 "Test Method for Ring Crush Strength of Paperboard", GB6546 "Test Method for Edge Crush Strength of Corrugated Paperboard", GB6548 "Test Method for Bonding Strength of Corrugated Paperboard", and GB2679.6 "Test Method for Flat Crush Strength of Corrugated Core".


Technical parameters:

1.Display mode: LED digital tube display

2.Capacity: 200kg

3.Units: Kg,N,LB switch

4.Force measurement accuracy: ±1%

5.Degree of decomposition: 1/10,000

6.Force measurement speed: 12.7mm/min+ stepless speed regulation

7.Sample area: 152.4*12.7mm(ring pressing), 25mm*100mm(edge pressing); 25mm*80mm (bonded), 64.5c ㎡(flat pressing)/ 32.2c ㎡

8.Pressure plate: 100 square meters

9.Compression spacing: 180mm

10.Power: 1/4HP

11.Machine dimensions (W*D*H) : 380*320*580mm

12.Main unit weight: Approximately 30kg

13.Working power supply: AC 220V+10%,1∮,1.5A

14.Accessories: Ring press plate, side press guide block


Product Features:

1.Two testing speeds are available, reducing the waiting time due to slow testing and significantly enhancing work efficiency.

2.Equipped with different fixtures for various tests, it serves multiple purposes with one machine.

3.It can store 12 groups of data.

4.It has a force value correction function, effectively reducing errors;

5.It has automatic protection function;

6.It can print the average value, maximum value and minimum value, and automatically convert the intensity value.
