Office stationery testing equipment

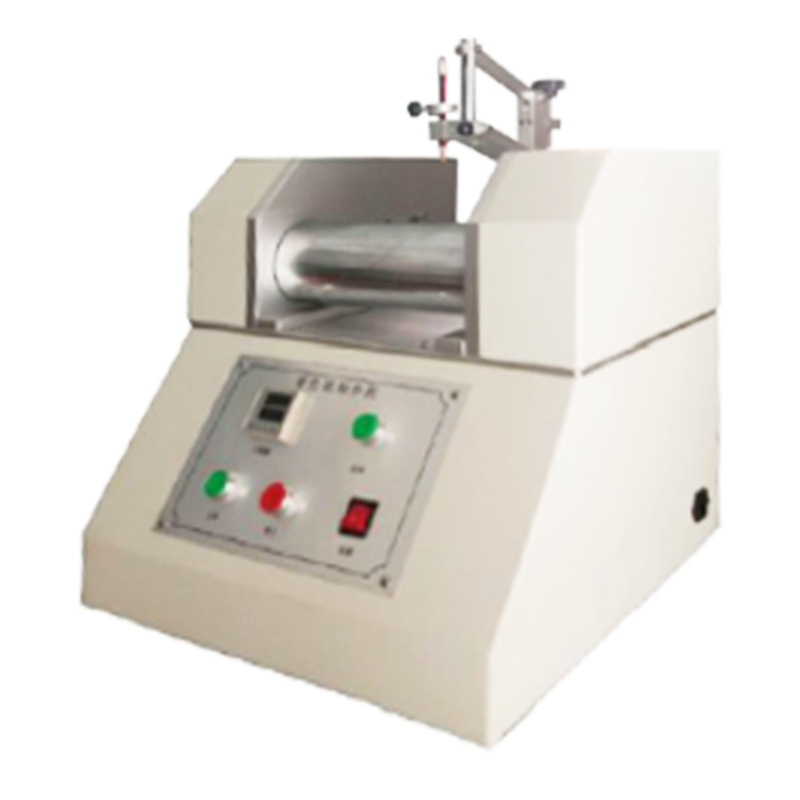

Colored paper making machine
  • Short Description
    The word erasure rate tester is composed of two machines, namely the colored paper making machine and the eraser machine. First, a high-grade HB pencil sharpened to 0.6MM was used to contact the test paper fixed on the drum of the test paper making machine at a 75-degree Angle under a load of 0.3kgf. Lines were drawn on the test paper at a speed of 310±10cm/min. The test paper was removed and fixed on the eraser machine. The eraser test piece was made into vertical contact with the line on the test paper. Under a standard load of 0.5KG, the back-and-forth rubbing test was conducted at a speed of 36±2CM/MIN for four times. After that, the test paper was removed and the concentration was determined with a lead core concentration meter. This machine can also be used for the eraser wear rate test.
  • SEND INQUIRY NOW
Product Details

Product description

The word erasure rate tester is composed of two machines, namely the colored paper making machine and the eraser machine. First, a high-grade HB pencil sharpened to 0.6MM was used to contact the test paper fixed on the drum of the test paper making machine at a 75-degree Angle under a load of 0.3kgf. Lines were drawn on the test paper at a speed of 310±10cm/min. The test paper was removed and fixed on the eraser machine. The eraser test piece was made into vertical contact with the line on the test paper. Under a standard load of 0.5KG, the back-and-forth rubbing test was conducted at a speed of 36±2CM/MIN for four times. After that, the test paper was removed and the concentration was determined with a lead core concentration meter. This machine can also be used for the eraser wear rate test.


Conform to the standard

It complies with the relevant requirements of the QBT2309-2010 standard


Technical parameters

1. Drum speed of the colored paper making machine:

2. Pencil load of the test paper making machine: 0.3kgf (300g)

3. Production width: 8mm

4. Pencil requirements: HB pencils of Zhonghua brand. Sharpen to 0.6mm

5. The Angle between the pencil and the surface of the cylinder: 75°

6. Test paper: 80g/m ²

7. Power Supply: AC220V, 50Hz

8. Dimensions :450×470×600mm(length × Width × height
