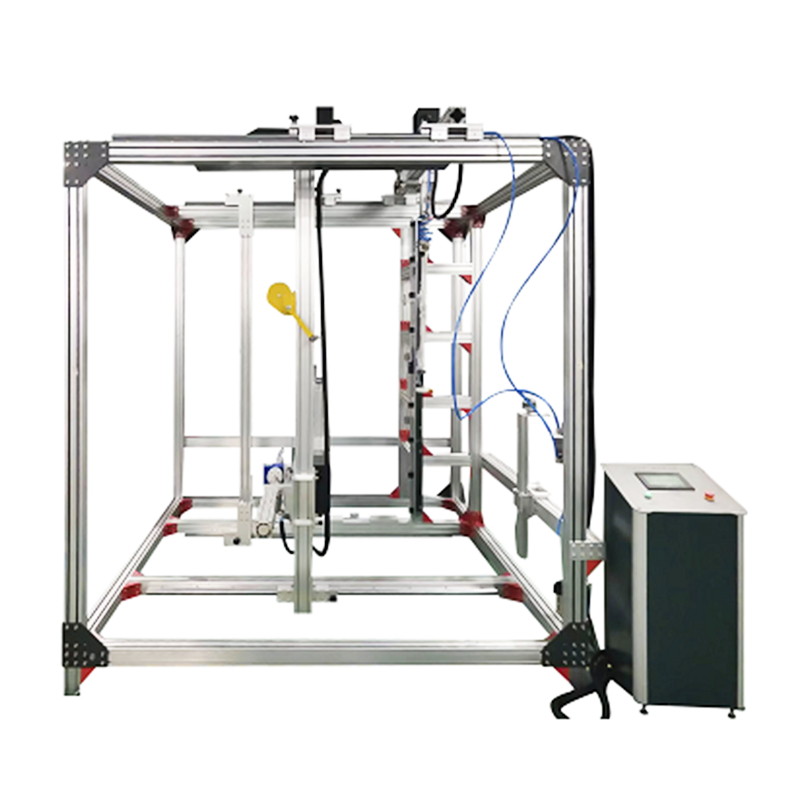

Product description
This document is applicable to the internal suspension hardware system and the internal internal suspension hardware system.
Product features
1.The whole use of removable frame structure, convenient handling, later rectification, maintenance, etc.;
2.The whole use of high strength aluminum profile production, the support foot all use large diameter earthquake-proof feet, to ensure the stability and life of the whole machine;
3.Using separate control system, as well as filling loading mode, increase the overall beauty and service life of the machine;
4.Adopt well-known brands, high quality, customized cylinder, servo motor as the driving mechanism;
5.The high-precision force value sensor is adopted to strengthen the test effect of the equipment.
Technical parameter
1.Structure: one working station;
2.Open the lower suspension sample test within the applicable cost;
3.Transmission mode: electric + pneumatic;
4.Handle rotation Angle: 0-180 degrees adjustable; .
5.Torsion speed: 4-5 times / minute is adjustable;
6.Flat opening Angle: 0-90°
7.Control mode: PLC + touch screen;
8.Sensor: 500kg;
9.Power supply: AC220V, 50 HZ.
Compliance with standards and terms
Category | Standard Name | Model Clauses |
Building window with internal flat open lower suspension hardware system | GBT 24601 (Latest Draft submitted for Approval) | 6.3.5 Repeated opening and closing performance |
Building window with internal flat open lower suspension hardware system | GBT 24601 (Latest Draft submitted for Approval) | 6.3.6 Performance of suspension end lifting weight |
Building window with internal flat open lower suspension hardware system | GBT 24601 (Latest Draft submitted for Approval) | 6.3.7 Impact performance |
Building window with internal flat open lower suspension hardware system | GBT 24601 (Latest Draft submitted for Approval) | 6.3.8 Turn on the impact performance |
Building window with internal flat open lower suspension hardware system | GBT 24601 (Latest Draft submitted for Approval) | 6.3.9 Close the impact performance |
