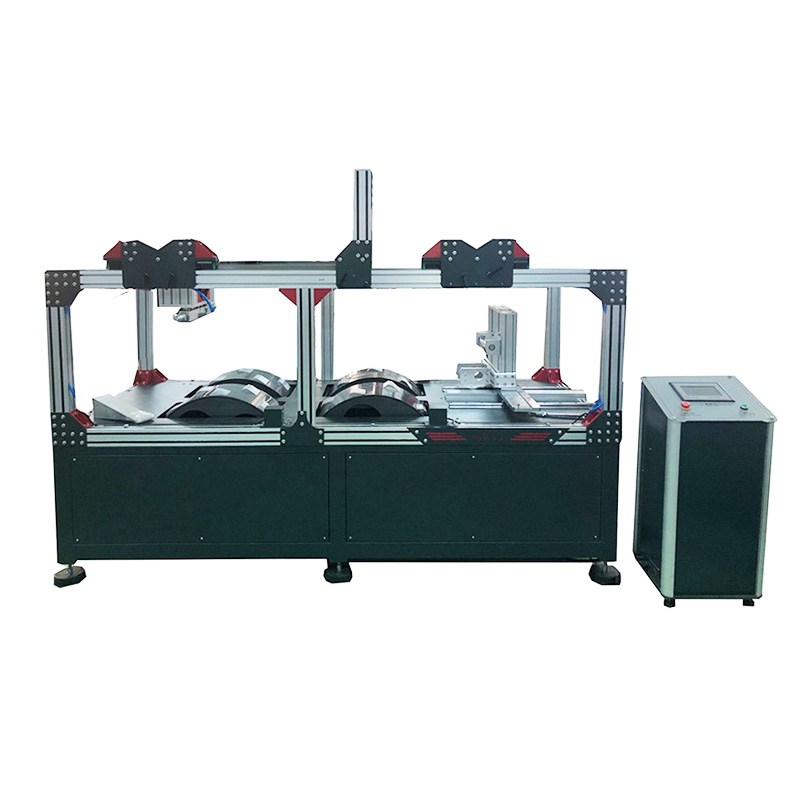

Electric Scooters Dynamic Strength Testing Machine-Scooter testing machine-Furniture testing machine, bathroom testing machine, environment testing machine, sports equipment t-Lituo testing machine

Product Details

Product description

Used for dynamic strength performance test of scooters. Meet or exceed EN13843:2009,EN 13613:2009, EN 14619:2019 and other standards.

Technical parameters

1. Drum diameter: 700mm±10mm

2. Roller speed: 0.5m/s±5%

3. Load: 20-100KG adjustable

4. Test time: 1min-99h

5. Control system: PLC touch screen controller.

6. Measurement accuracy: speed ±1km/h, load ±1kg, time error accuracy 0.1s

7. Power source: Motor control system equipped with fixture: 90° fixture 70° fixture

8. Obstacles: steel, trapezoidal, dimensions according to EN 13843:2009, EN 13613:2009, EN 14619:2019 and other standard requirements

9. Add weight: scooter durability kit

10.PLC automatic control, touch screen to observe all the test data; Accurately record and real-time test conditions to detect running time and cumulative times; With touch screen control, all operations can be operated intuitively on the touch screen. The use of special control software can achieve multi-channel closed-loop control to complete the test of automatic control, automatic measurement and other functions.

11. The number of detection can be set, and the equipment will automatically shut down and give an alarm after the detection is completed

12. With stop/power memory and stop point detection stop function; After a sudden power failure, the device can automatically save data and run according to the parameters set before the power failure, without manually setting parameters.

13. Stop mode: stop when the number of tests is reached, the equipment is damaged or the deformation is too large, and the alarm will be automatically stopped.

14. The equipment has a fault diagnosis system, which automatically diagnoses the fault of the equipment and displays the fault code to facilitate the inspection and troubleshooting.

15. Set 4 stations according to EN13843:2009, EN 13613:2009, EN 14619:2019

16. The rest meet the requirements of the relevant items in EN13843:2009, EN 13613:2009, EN 14619:2019 and other standards.
