Product Details

Product description

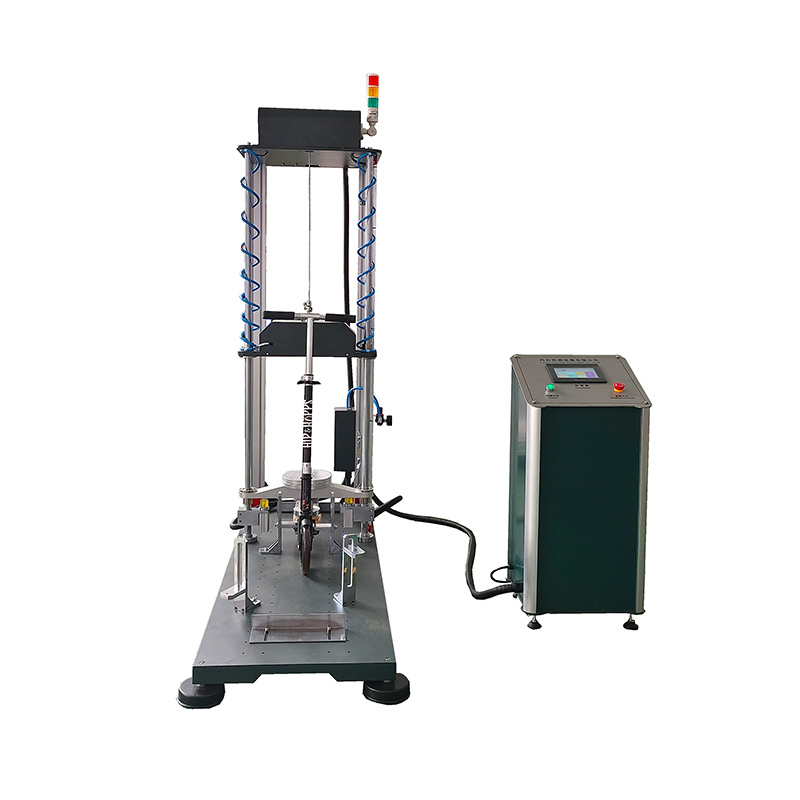

This machine is the vertical impact test of roller skates. Suitable for impact strength test of roller skates.

Technical parameters

1. The product meets the relevant requirements of EN13613 standard.

2. Impact hammer: meet the requirements of EN13613 standard.

3. Weight of drop hammer: 20KG, weight diameter: 100mm, weight bottom has a thickness of 17mm, hardness of 70SHOREA.

4. Drop height: 300mm, (scooter center) fall three times.

5. The total stroke of the machine drop: 0 ~ 1000mm adjustable, electromagnetic control.

6. Skateboard (car) fixture and load weight set.

Product Characteristics

1. With anti-secondary impact device to ensure only one impact;

2. Beam movement adopts electric control, impact hammer release adopts electromagnetic control;

3. According to different types of skateboards (cars), configure different fixtures;

4. Equipped with different weights to meet different load requirements;

5. With the point control beam movement, it is convenient to set the position of the anti-secondary impact device.
